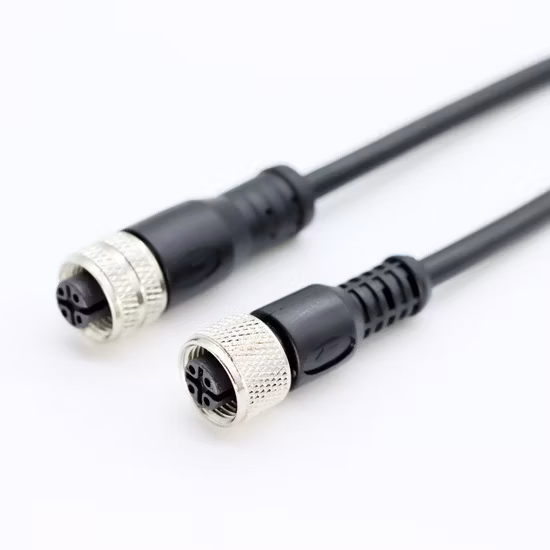

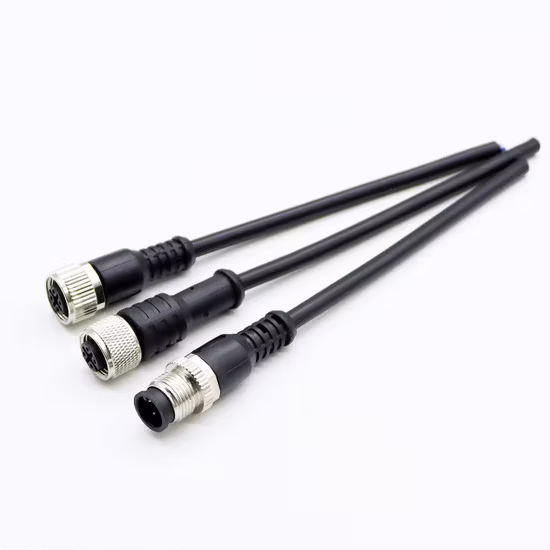

M12 Cable Straight Female Head Hole Plug with Wire 2 M Connecting Wire M12 Waterproof Connector

Basic Info

Model NO.	YG-12-I-4B-(_M)-PVC
Certification	RoHS, CE, ISO9001
Application	UHF, FPC, Microwave, Automobile, Sensor/Cable
Contact Resistance	3.8mΩ
Contact Material	Brass Nickel Plating
Surface Treatment	Nickel Plating
Housing	Brass Nickel Plating
Standard	European Standard
Function	AC Plug, DC Plug
After-Sales Service	Replacement Under Normal Damage
Warranty	1 Year
Shape	Brass Nickel Plating
Nominal Voltage	30V/60V/250/
Brand	Yueguo
Transport Package	Carton Packaging
Specification	PCS
Trademark	yueguo
Origin	Guangzhou

Packaging & Delivery

Package size per unit product 46.00cm * 32.00cm * 32.00cm Gross weight per unit product 0.500kg

Product Description

Dimension drawin

Speclficatlions

Pin Number	4	5	8
Connector Locking s/stem	screw
Temination	soldermoulded-on cable
Wire gauge in mm²	Max.0.34mm²(WAG22) Max.0.25mm²(WAG24)
Cable outlet(mm)	3.5-8mm
Shell protection	IP65/IP67
Mechanical operation	>100 Steckzyklen/>100 Steckzyklen
Upper temperature	+85ºC
Lowertemperature	-25ºC
Rated voltage	250V	60V	30V
Rated imoulse voitage	2500V	1500V	800V
Pollution degree	3
Overvoltage categorie	II
Materiall group	II
Rated current(40ºC)		4A	2A
Contact resistance	≤3Ω
Pin contact	CuzN(Messing/brass)
Contact plating	Au(Gole/gold)
Male insert	PBT/PA(UL94HB)
Housing canle connectoe	PUR/PVC

Company Profile

InstrumentationPackaging methodFAQQ1: Are you a manufacturer?A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.
Q2: What is the necessary information needed for quotation?
A2:The series(M5/M8/M12),coding,male or female,pin number,cable length.
Q3: What is the minimum order quantity(MOQ)?A3:100 pcs or negotiatable.Q4: Volume order lead time?
A4: 3-4 weeks.
Q5: After-sales service
A5: All the inquiry will be response within 24 hours, the commucation will be effective.
